Commercial Playground SlidesTube, Spiral, Wave and Stainless Steel Slides for Public Play

Straight, wave, double-lane, spiral and tube slides in rotomolded LLDPE, and 304 brushed stainless steel slides, each drawn on your site layout with its exit, use zone and orientation before it is quoted.

Send Your Deck Heights See the slide range
  • ASTM F1487 · CPSC · EN 1176
  • 8 mm nominal wall
  • 304 tamper-resistant fasteners
  • Footing detail per post and exit foot
02/ 13Slide schedule · 7 forms

Outdoor Slide RangeStraight, Wave, Double-Lane, Spiral, Tube and Stainless Steel

These commercial playground slides cover straight and wave slides, double-lane wave slides, spiral slides and flanged tube slides in , plus 304 brushed stainless steel slides and embankment slides.

Every slide is matched to its deck and age zone and set on footings shown on your footing detail drawing.

Part of the commercial playground equipment line · same layout as your structures, swings and surfacing

  • A short evergreen straight slide running from a low deck of a commercial play structure

    Straight and wave slides

    Single lane · LLDPE · 8 mm wall

    For lower decks in 2–5 zones and decks in 5–12 zones.

    2–55–12
    In-house

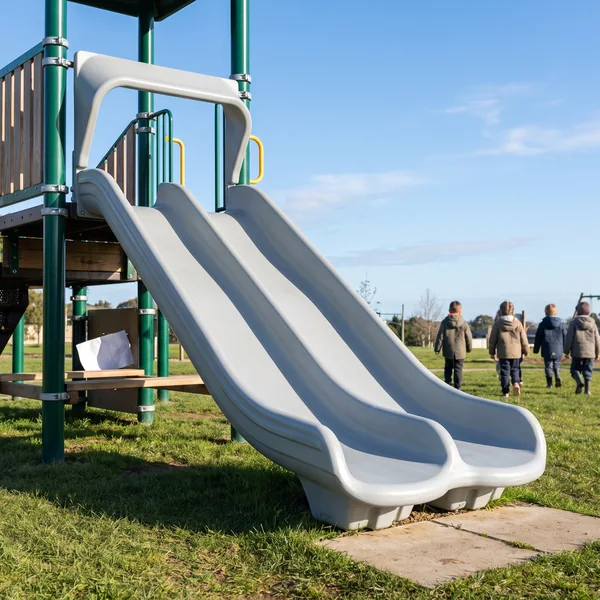

  • A grey double-lane wave slide leaving one wide deck opening

    Double-lane wave slides

    Two lanes · one wide opening

    Two children side by side from one wide deck opening.

    2–55–12
    In-house

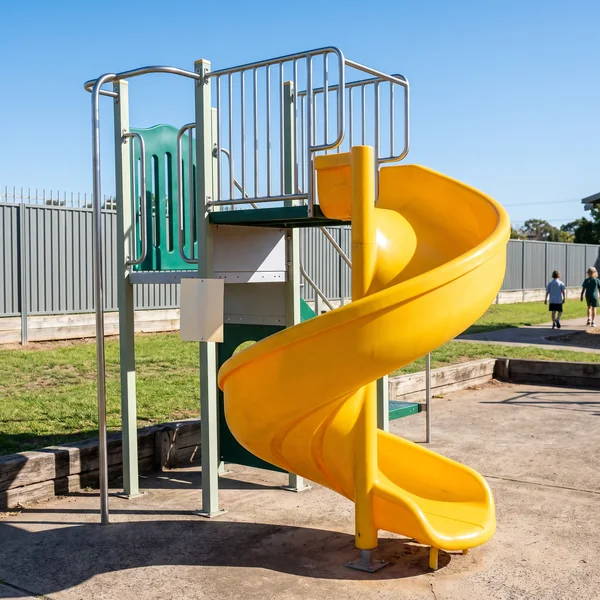

  • A yellow spiral slide turning down from the tallest deck of a play structure

    Spiral slides

    Tallest decks · compact footprint

    For the tallest decks on a structure, in rotomolded LLDPE.

    2–55–12
    In-house

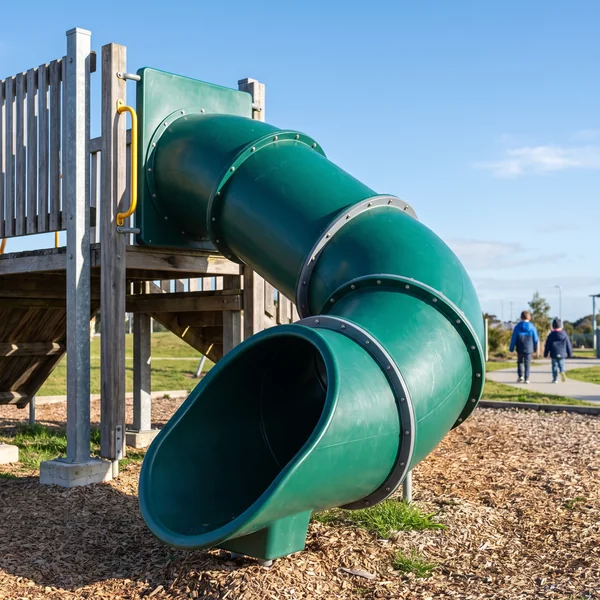

  • An evergreen tube slide with a bend section and visible flanged joints

    Tube slides

    · bends

    One slide can run straight, turn or drop from the tallest decks.

    2–55–12
    In-house

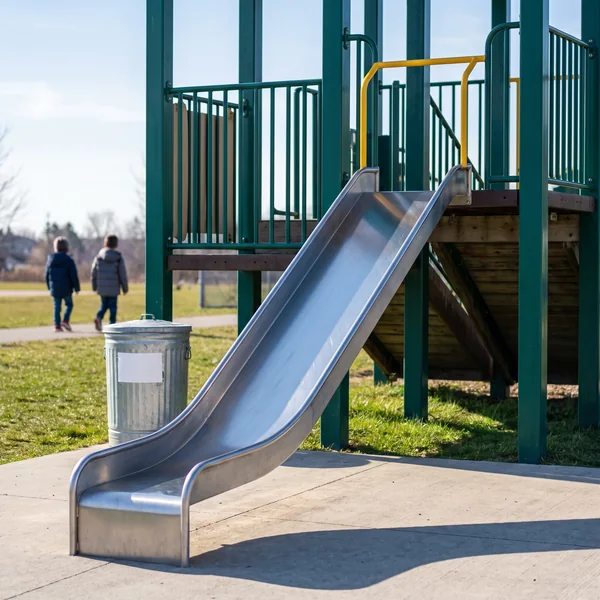

  • A brushed stainless steel straight slide on a play structure

    Stainless steel slides

    304 · brushed · straight or wave

    In place of LLDPE on vandal-prone sites.

    2–55–12
    Partner-built
  • A stainless steel embankment slide laid down a grassy park slope

    Embankment slides

    304 · in sections · on a slope

    Laid down a slope on drawn footings.

    2–55–12
    Partner-built
  • A freestanding slide unit with a ladder, a single deck and a slide in a park corner

    Freestanding slide units

    Ladder · deck · slide · Ø114 mm

    A slide on a site that needs no full structure.

    2–55–12
    In-house

The profile under each photo is the form as it appears on your elevation drawing: deck, run and exit, all drawn from one ground line.

Rotomolded LLDPEUV-stabilized polyethylene melted inside our own steel molds while they turn, so the slide comes out in one piece, colored through the wall.
Flanged sectionsTube slide pieces with a bolted ring at each end, so straight and bend sections join into one run.
03/ 13Age zone first · then deck height

Slide Selection by Age ZoneDeck Height, Slide Form and Structure Position

The design office picks each slide from two inputs on your layout: the age zone the slide sits in and the height of the deck it starts from.

Your site is zoned for 2–5 years and 5–12 years, following the ASTM F1487 and CPSC age groups. A slide belongs to one zone, and that zone decides how high its start deck can be.

Barrier threshold · CPSC handbook

In 2–5 zones, slides run from lower decks. In 5–12 zones, they run from higher decks. Under the CPSC handbook, a deck above 30 in (762 mm) in a 2–5 zone, or above 48 in (1219 mm) in a 5–12 zone, needs a . A slide entry on such a deck sits in an opening in that barrier.

01 · Age zone
02 · Deck the slide starts from
The drawing shows the barrier threshold for the zone you pick and the form that starts from that deck.
A low two-deck play structure with a short slide for the 2 to 5 year zone
2–5 · lower deck

Straight or wave slide

For lower decks, a straight or wave slide is the direct choice: a short run from the deck edge to the ground.

A 5 to 12 play structure with a rope net, climbers and a taller slide from a mid-height deck
5–12 · lower or mid-height deck

Straight or wave slide

For lower and mid-height decks, a straight or wave slide is the direct choice: a short run from the deck edge to the ground.

A double-lane wave slide leaving a wide deck opening
5–12 · wide deck opening

Double-lane wave slide

For a wider deck opening where children go down together, a double-lane wave slide fills the opening.

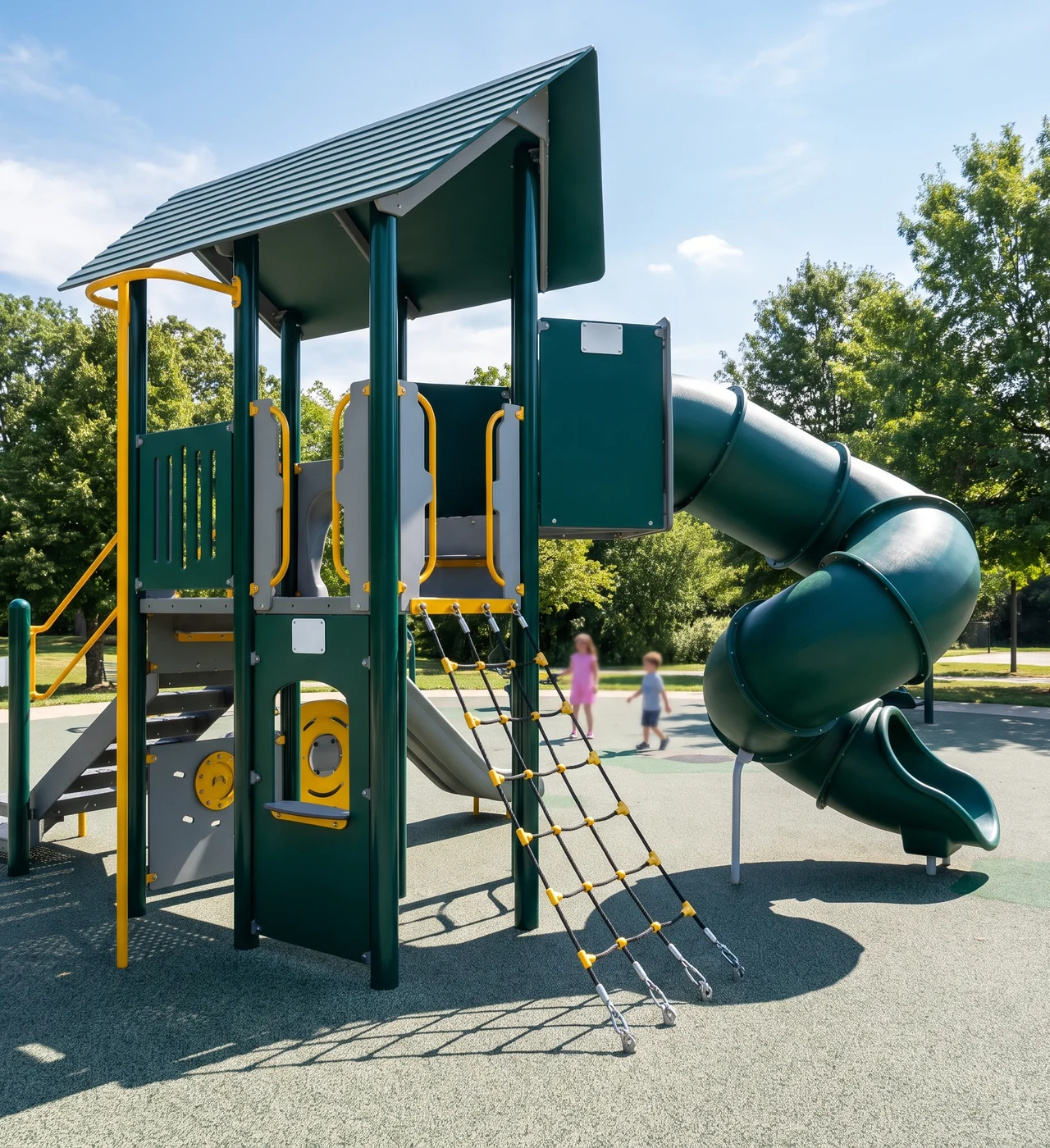

A tube slide leaving the tower of a commercial outdoor play structure beside a rope climber
5–12 · tallest deck

Spiral or tube slide

For the tallest decks on a 5–12 structure, spiral and tube slides take over. A spiral turns the height into a compact circle next to the structure. Bend sections let a tube slide turn around a post, run along the structure or head away from a path.

Straight from a high deck · exit far from the structure
Spiral or tube from the same deck · exit close

Structure position

Before a form is fixed, the designer checks where the slide's exit lands. A straight slide from a high deck runs long and ends far from the structure. A spiral or tube slide from the same deck can end close to it. On a tight site, that is often what decides the form.

Each slide appears on the layout with its structure number, start deck and form, plus a single-item plan and elevation showing the start deck height. Low-deck 2–5 structures are on preschool and daycare playground equipment.

Protective barrierAn enclosing barrier around a raised deck. A slide entry on that deck sits in an opening in the barrier.
04/ 13Exit · use zone · clash check

Slide Exit and Use Zone DrawingExit Region, Use Zone and Clash Check on Your Layout

Every slide takes up ground past its own end, and that ground is drawn on your layout before the slide goes into the quotation.

The slide's exit height, its and the in front of the exit are drawn to the CPSC handbook values for that slide's height. For projects built to EN 1176, they are drawn to EN 1176.

A slide from a higher deck gets the larger zone its height calls for, and the zone moves with the slide's form and direction.

Single-item plan & elevation · what you receive
  • Use zone · CPSC handbook values for this slide's height, or EN 1176
  • Exit region · end of the run, above the surfacing
  • Exit · the point the zone is measured from
  • Dimension · value on your issued sheet
ItemS1-040 · wave slide
StructureS1
StandardASTM F1487 / CPSC
RevA

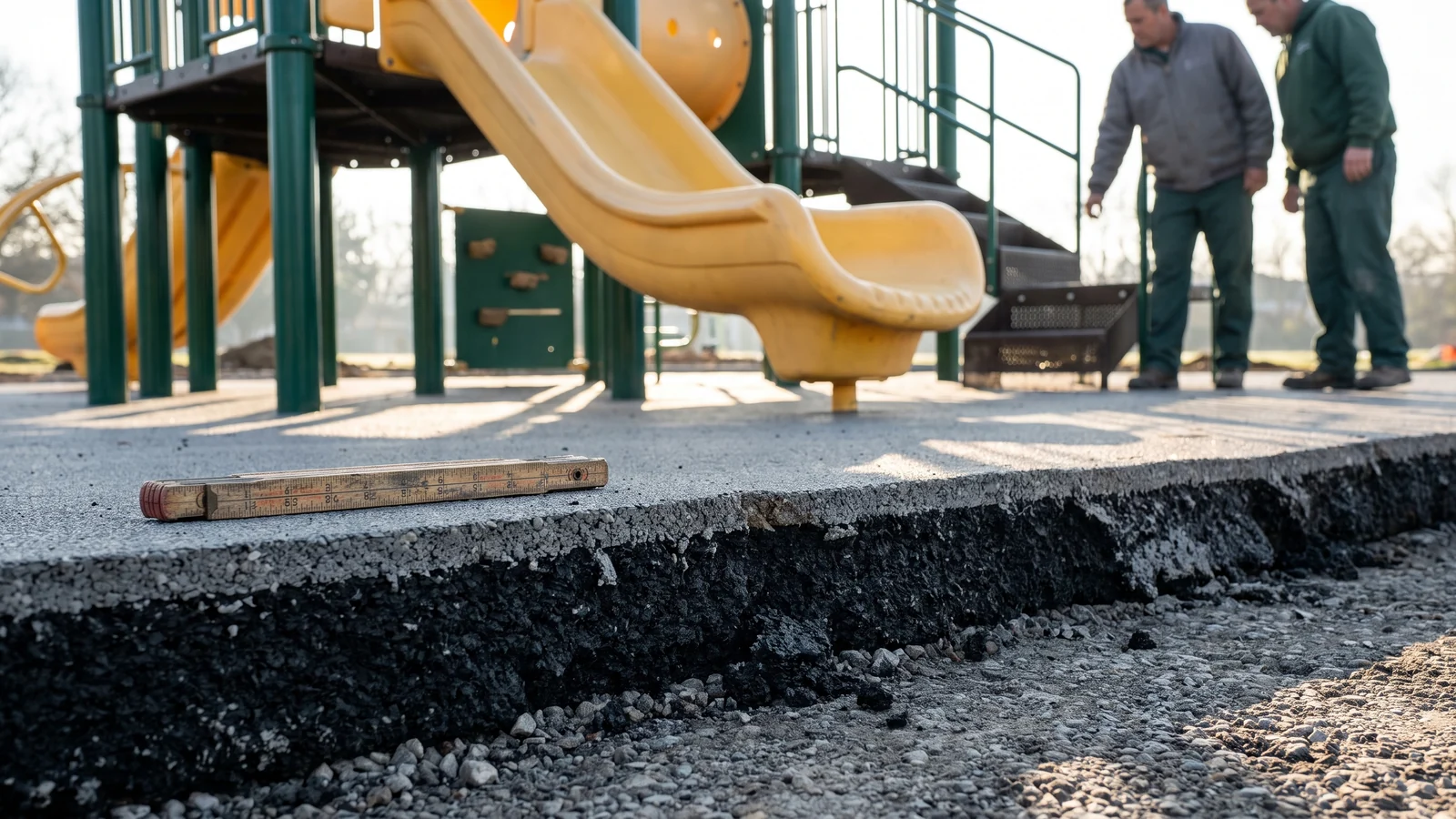

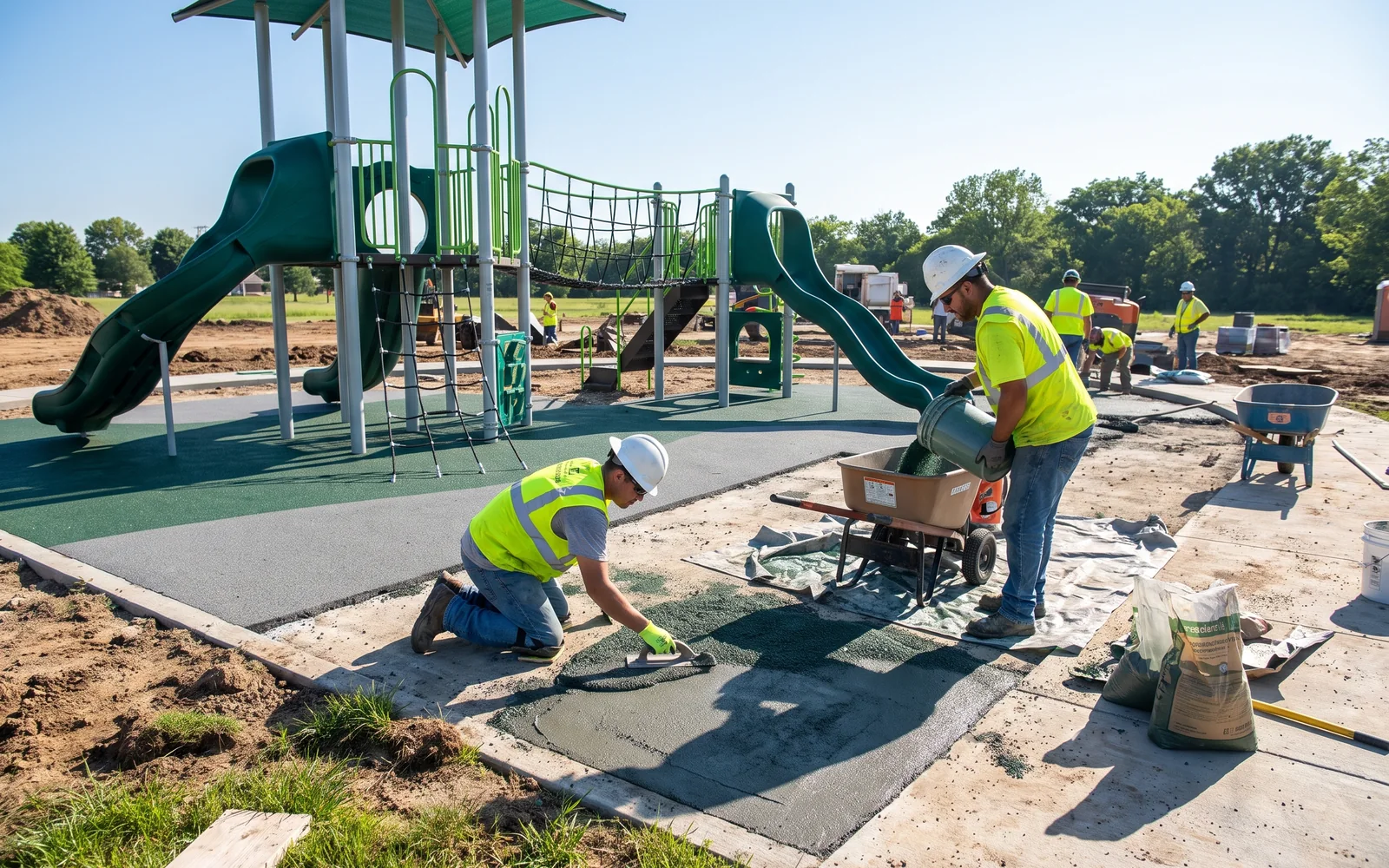

Poured-in-place EPDM surfacing in front of the exit of a slide on a commercial play structure

The clash check

After every piece on the site has its use zone and fall zone drawn, the design office checks them against each other: the zone in front of a slide exit against swing zones, spinner zones, neighboring structures, paths, fences and benches. When two zones overlap, the designer changes the drawing.

Overlap · W1 swing zoneClear

The site plan you receive is the version where every zone clears.

An installation crew laying poured rubber surfacing under a finished play structure, one pouring and one troweling

Surfacing in front of the exit

The use zone around the slide exit goes into the surfacing thickness zone plan and area table, with thickness set by the critical fall height of the equipment above it. Your surfacing contractor lays to that plan. Materials are on playground surfacing.

What you get with the quotation

  • Site layout · slide, exit region, use zone
  • Single-item plan & elevation
  • Design compliance statement per item
  • Installation drawings · use zones marked

The full site drawing: playground layout design · each standard: safety standards

A landscape architect tracing use zones on tracing paper laid over a printed plan set
Exit regionThe last part of the slide where the child slows down and stands up, with its height above the surfacing.
Use zoneThe ground in front of and around a piece of equipment that must stay clear of other equipment and obstacles, sized by the standard.

Every slide on your layout is drawn with its exit region, its use zone and its orientation before it is quoted.

ExitUse zoneOrientation
05/ 13North arrow on every layout
Hemisphere
Answer

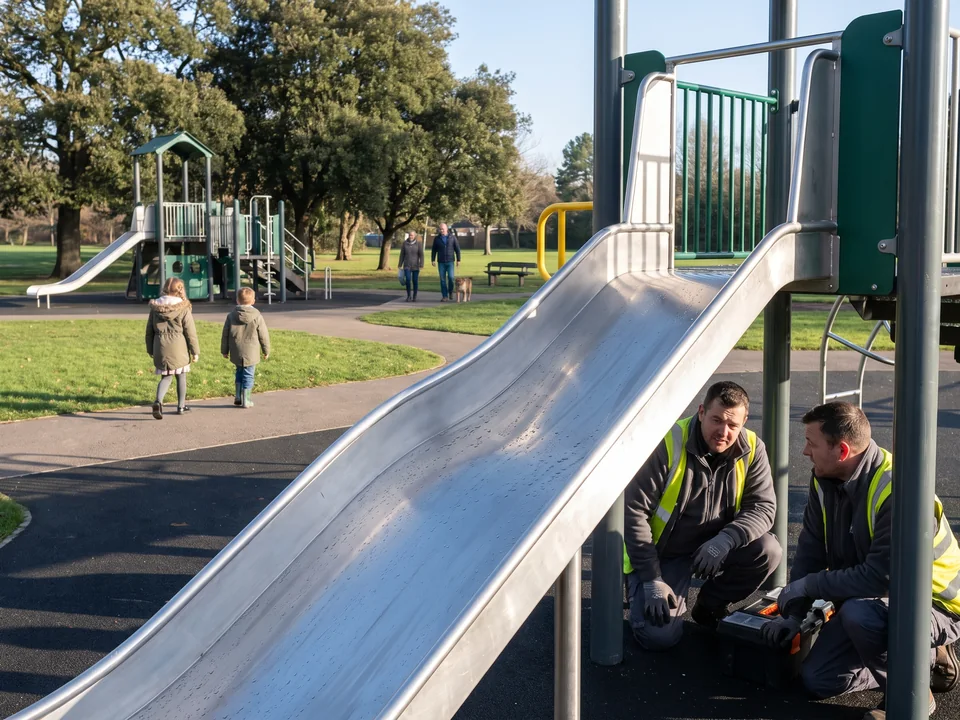

A brushed stainless steel wave slide on a park play structure
304 slide on the shaded side

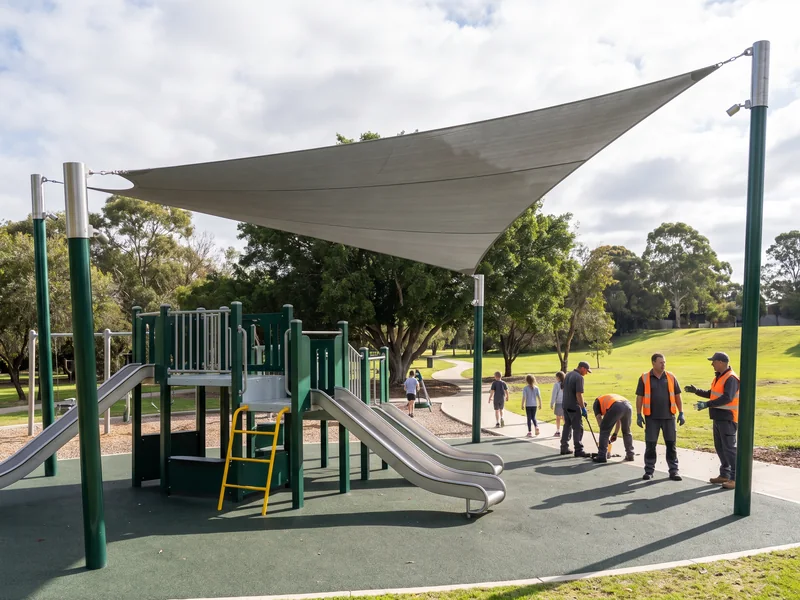

A shade sail on its own posts over a play structure in a park
Under the shade layer

Slide Orientation and Sun ExposureNorth Arrow, Afternoon Sun and the Shade Layer

A slide's orientation is fixed on the drawing along with its position. Scroll the plan and the sun crosses it: the stainless slide that faces the afternoon sun is moved to the shaded side, or drawn under the shade layer.

  • North arrow on every layout

    Every site layout carries a north arrow, and each slide is drawn with its orientation. You can see which way the slide faces and which sides of the structure take the afternoon sun before anything is made.

  • Stainless steel slides

    A metal slide surface heats up in direct sun. Where the site allows, the design office places stainless slides out of direct afternoon sun, on the shaded side of the structure or facing away from the afternoon side. Where the layout doesn't allow that, the slide is drawn under the shade layer.

    Shade posts and frames come from our steel workshop in the same Ø114 mm galvanized, powder-coated system as the play structure, with footings on the same footing detail drawing. Sail fabric is partner-built. Options: playground shade structures.

  • Rotomolded slides

    LLDPE slides are UV-stabilized and colored through the wall, so a scratch shows the same color. Their orientation is drawn too, set together with the exit use zone and the paths around it.

  • When you change the drawing

    If your landscape architect moves a structure or rotates the site, the north arrow and slide orientation are redrawn in the revised layout, and the exit use zones are checked again.

What you get: a layout that shows each slide's direction against north and, where used, the shade layer over it. A parks department can use it to review sun exposure at approval, not after installation.

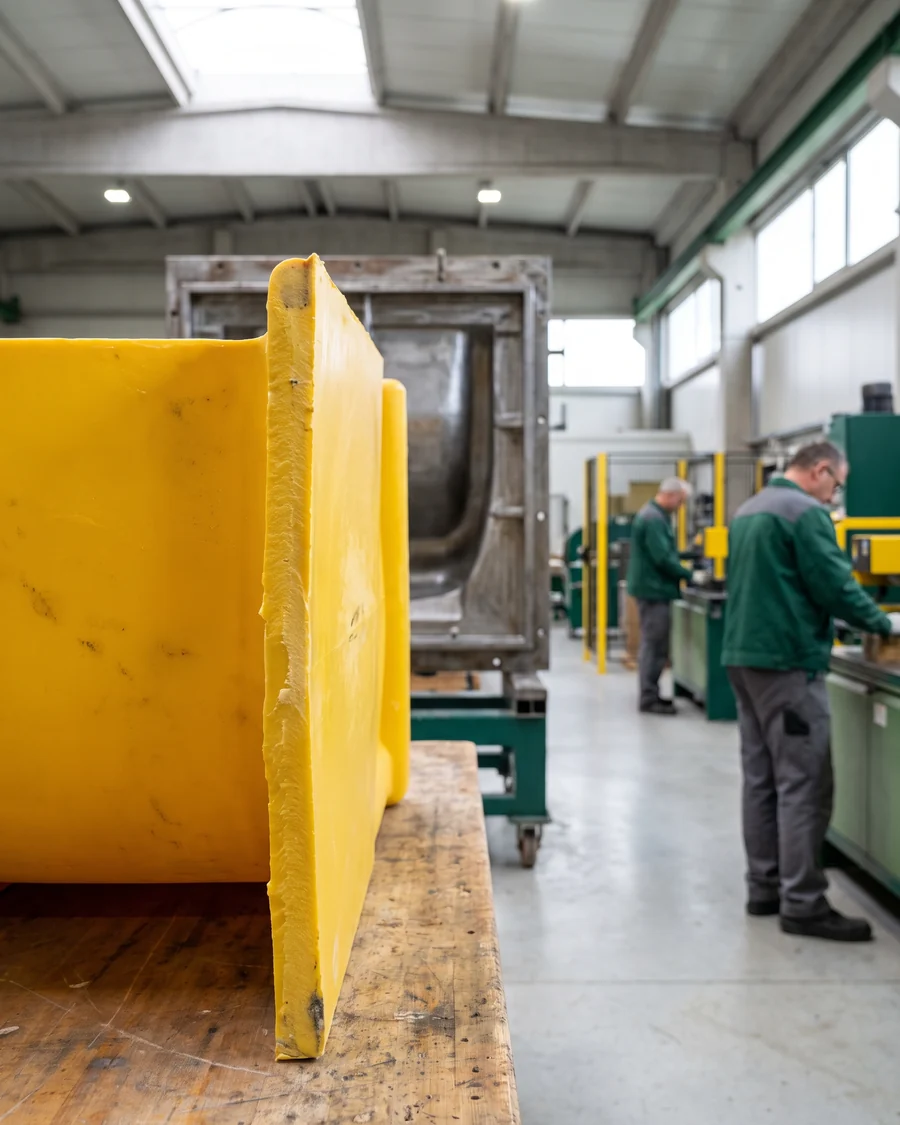

A rotomolded LLDPE slide section showing its wall, colored all the way throughLLDPE · cut section
06/ 13Two materials · one structure

Rotomolded LLDPE vs 304 Stainless Steel Slide Comparison

In-houseRotomolded LLDPE slidesPartner-built304 stainless steel slides
FormsStraight · wave · double-lane wave · spiral · tube in flanged sectionsStraight · wave · embankment
Made byOur rotomolding workshop, from our steel moldsPartner-built, inspected by our QC before loading
Wall / finish8 mm nominal wall, UV-stabilized, colored through the wallBrushed finish
ColorStandard color range, custom colors on requestStainless
SitesParks, schools, community sites, most outdoor structuresVandal-prone sites, after-hours campuses, embankments
SunOrientation drawn on the layoutPlaced out of direct afternoon sun or under the shade layer
Fastening304 tamper-resistant fasteners304 tamper-resistant fasteners

Choose LLDPE when

You want color, a spiral or a tube slide from a tall deck.

Choose stainless when

The site is open after hours with little supervision, or the slide runs down a slope.

Both can sit on one structure.

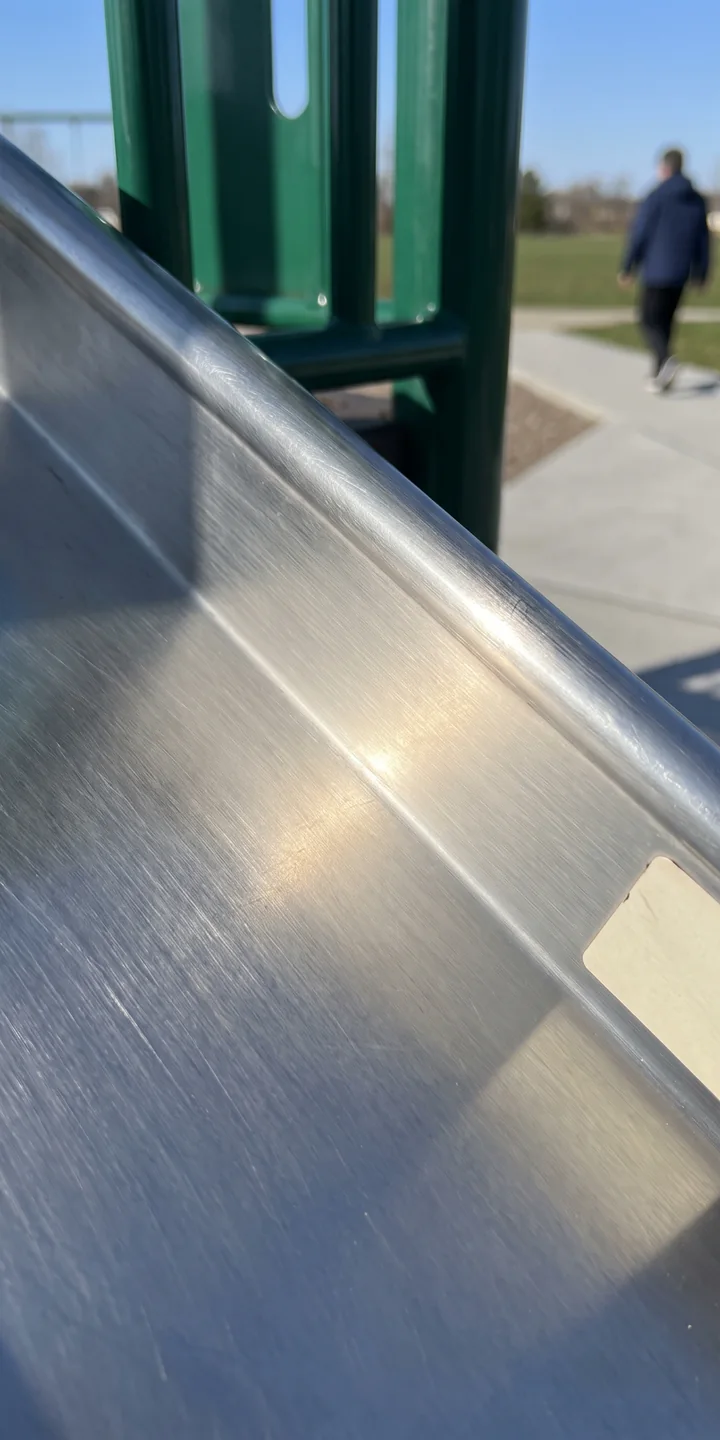

The brushed surface of a stainless steel slide with one line of morning highlight304 · brushed
07/ 13Entry · support posts · exit foot

Slide Connections to the Play StructureEntry Bolts, Support Posts and Exit Foot

A slide meets the rest of the playground at three kinds of points. Each one is fixed with a named part and, where it reaches the ground, has its own footing on your footing detail drawing.

Side elevation · one long wave slide · every support reaches its own footing

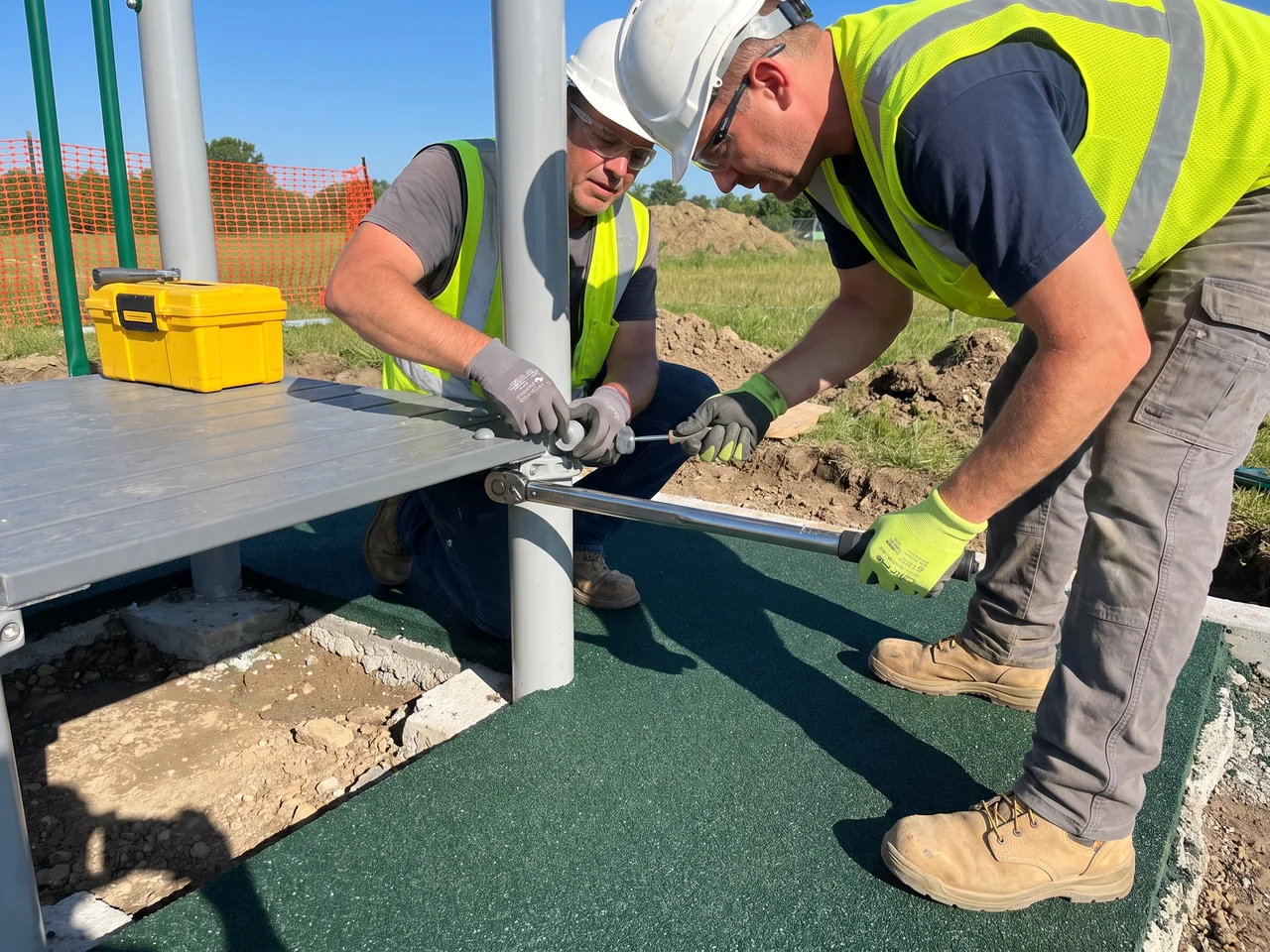

  1. An installer tightening a deck connection with a torque wrench while a colleague caps the fastener heads
    1

    Entry at the deck edge

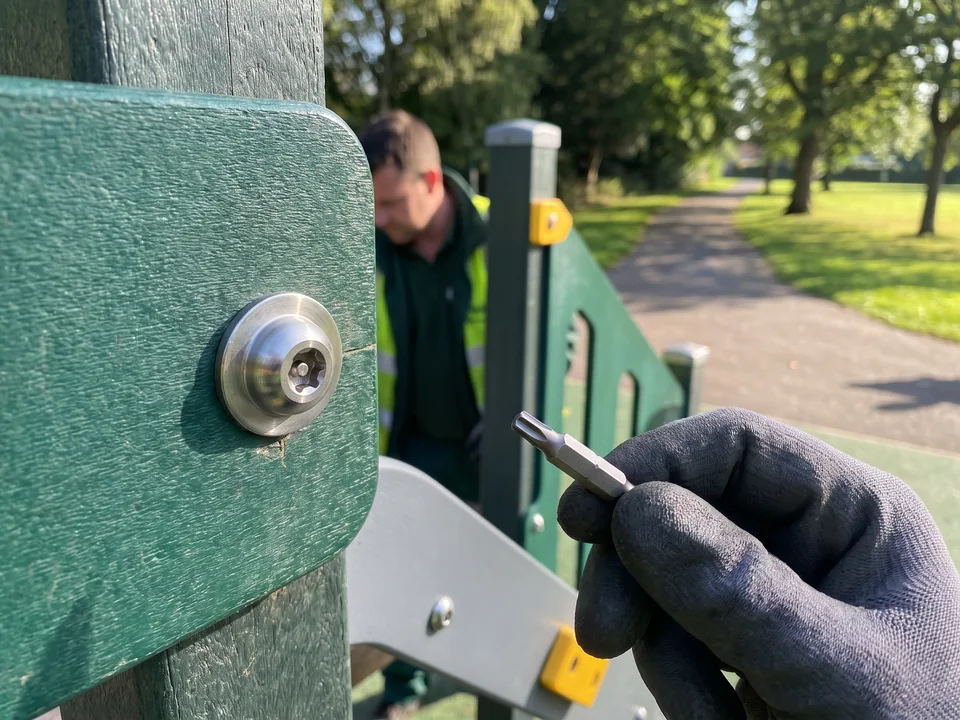

    The slide entry bolts to the deck edge with 304 stainless steel tamper-resistant fasteners, capped, under the entry hood or protective barrier. The entry opening is checked with entrapment probes and gap gauges, the same way as every other opening on the structure.

    Torque values for these bolts are marked on the assembly drawing. Security bits for the tamper-resistant heads ship in the spare hardware kit.

    304 tamper-resistant · capped

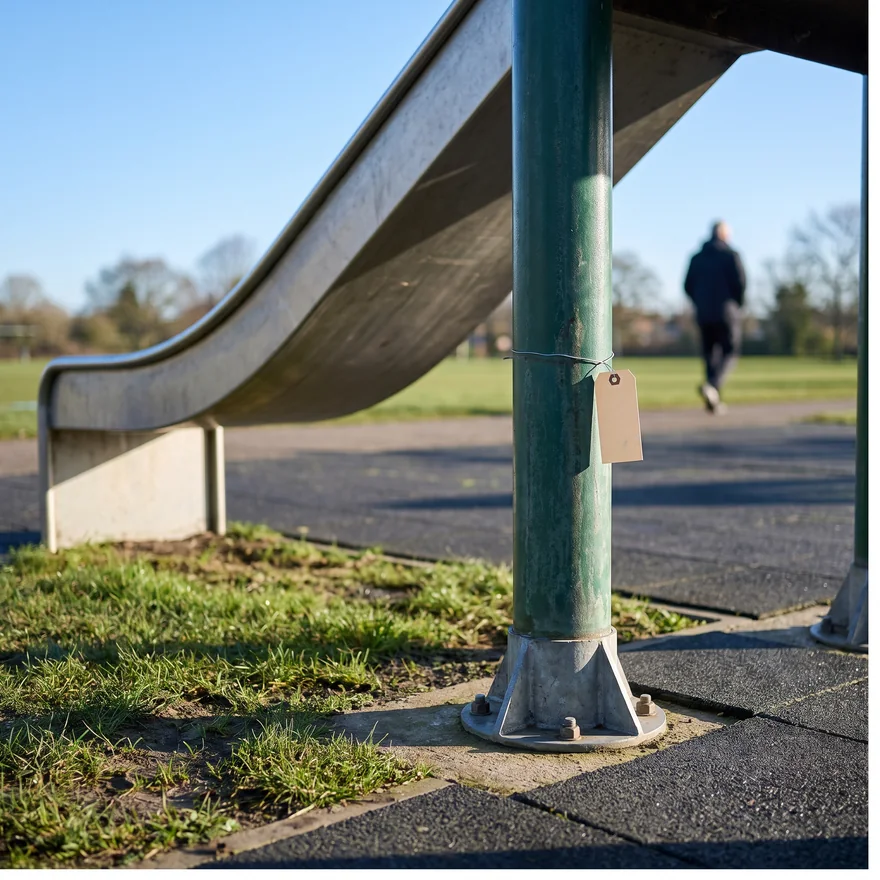

  2. An evergreen intermediate support post carrying a long slide and entering the ground
    2

    Intermediate support posts

    Long slides and spiral slides stand on intermediate support posts in the same Ø114 mm galvanized, powder-coated tube as the structure posts. Each support post has its own footing, with the footing size shown on the footing detail drawing.

    Posts are set in concrete by default, with anchor-bolt base plates as an option, both per that drawing. Tube slide sections are joined at their flanges, and their support posts are drawn along the run.

    Ø114 mm · concrete or base plate

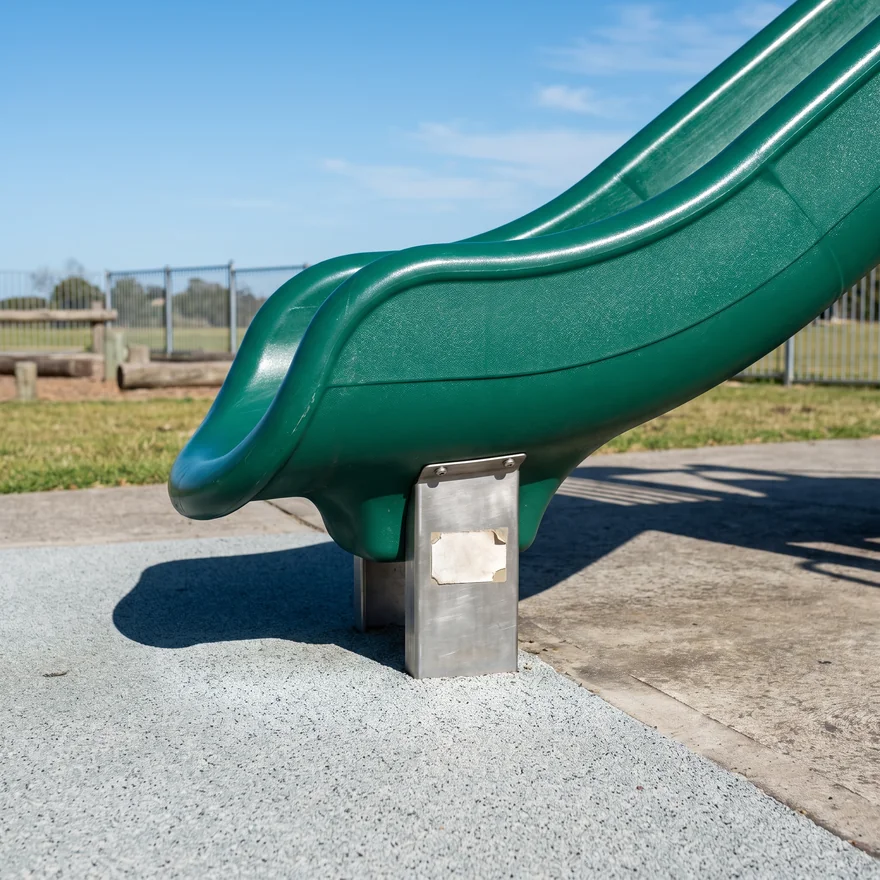

  3. The exit end of a slide standing on its support foot
    3

    Exit foot

    The exit end of the slide sits on a support foot with its own footing, also on the footing detail drawing. The exit stays at the height it was drawn to, above surfacing laid to the zone plan.

    Own footing · exit height as drawn

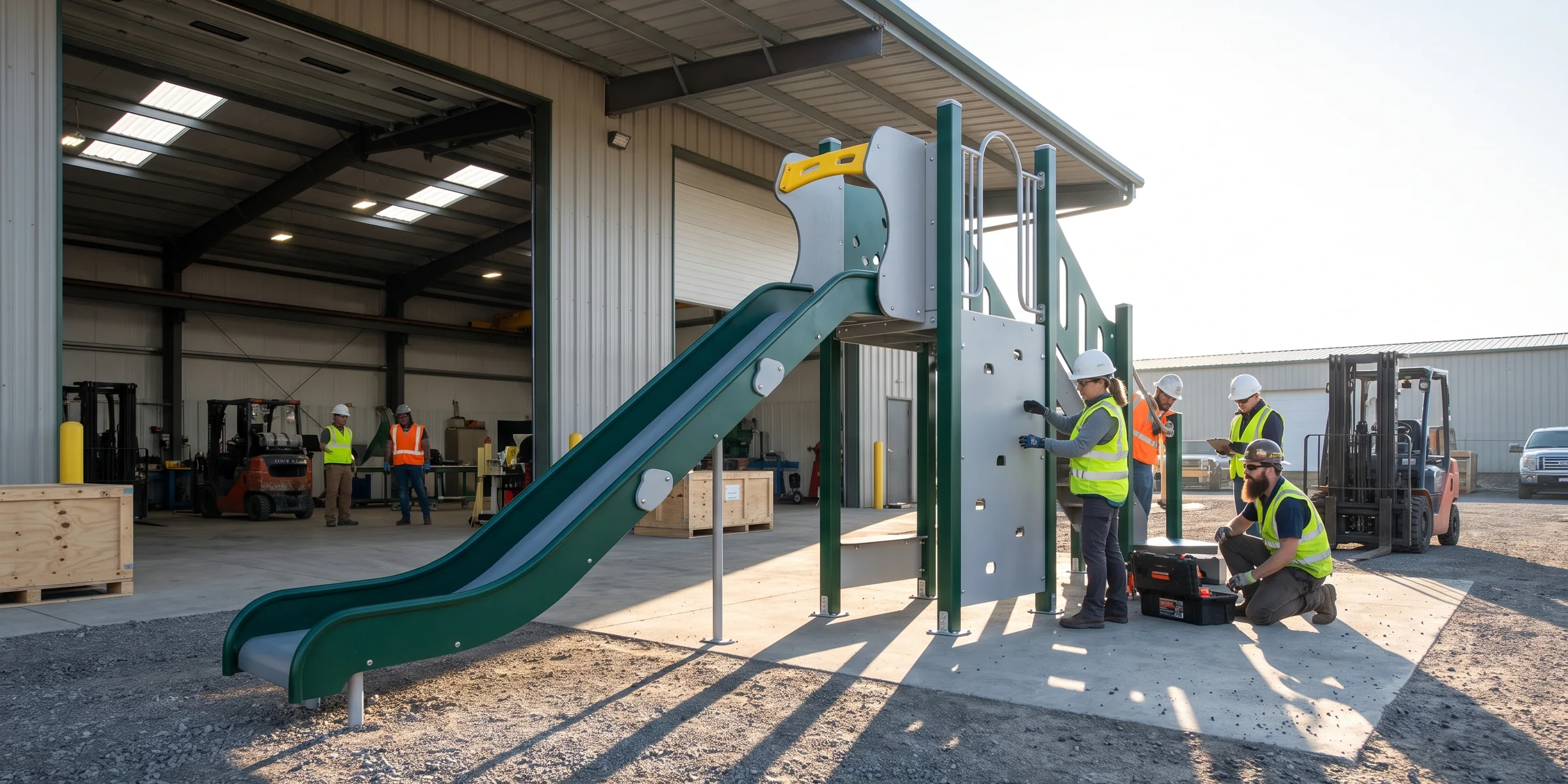

A pre-assembled evergreen, grey and yellow slide structure standing in the factory yard
Pre-assembly yard · slide fitted to its deck

Numbered to your structure

The slide, its support posts and exit foot all carry part numbers with the structure prefix, in the S1-014 format, and appear in the assembly drawing set with exploded views and step numbers.

Your installer counts the footings for each slide off one drawing and fits each part to its numbered position.

S1-040 · slideS1-041 · support postS1-042 · exit foot

Checked before packing

Outdoor structures are pre-assembled in our factory before packing, with slides fitted to their decks and every connection checked.

Then they are disassembled and numbered, and the pre-assembly video shows close views of the slide connections. Process: how we build playgrounds · fitting order: installation.

We supply

  • The slide and its support posts
  • Anchoring hardware
  • Footing detail drawings

You or your local installer

  • Excavation and concrete footings
  • Installation labor
  • Optional on-site supervisor from our pre-assembly yard team

Security bits for every tamper-resistant head travel in the spare hardware kit.

Send Deck Heights, Age Zone and Site Plan

A layout with each slide's exit and use zone drawn comes back within 3 working days.

Send Your Deck Heights
08/ 13Ladder · single deck · slide

Freestanding Slide UnitsLadder, Single Deck and Slide on Ø114 mm Posts

A freestanding slide unit puts a slide on a site without a full play structure: a park corner, a school yard with an existing structure, or a second slide next to one.

The unit is a ladder, a single deck and a slide, standing on Ø114 mm galvanized, powder-coated posts with a 3.0 mm wall, on the same post and deck system as our multi-deck structures.

The deck is plastisol-coated punched steel, and the slide is a rotomolded straight or wave slide or a stainless steel slide, fixed with 304 tamper-resistant fasteners.

Structure number · S4

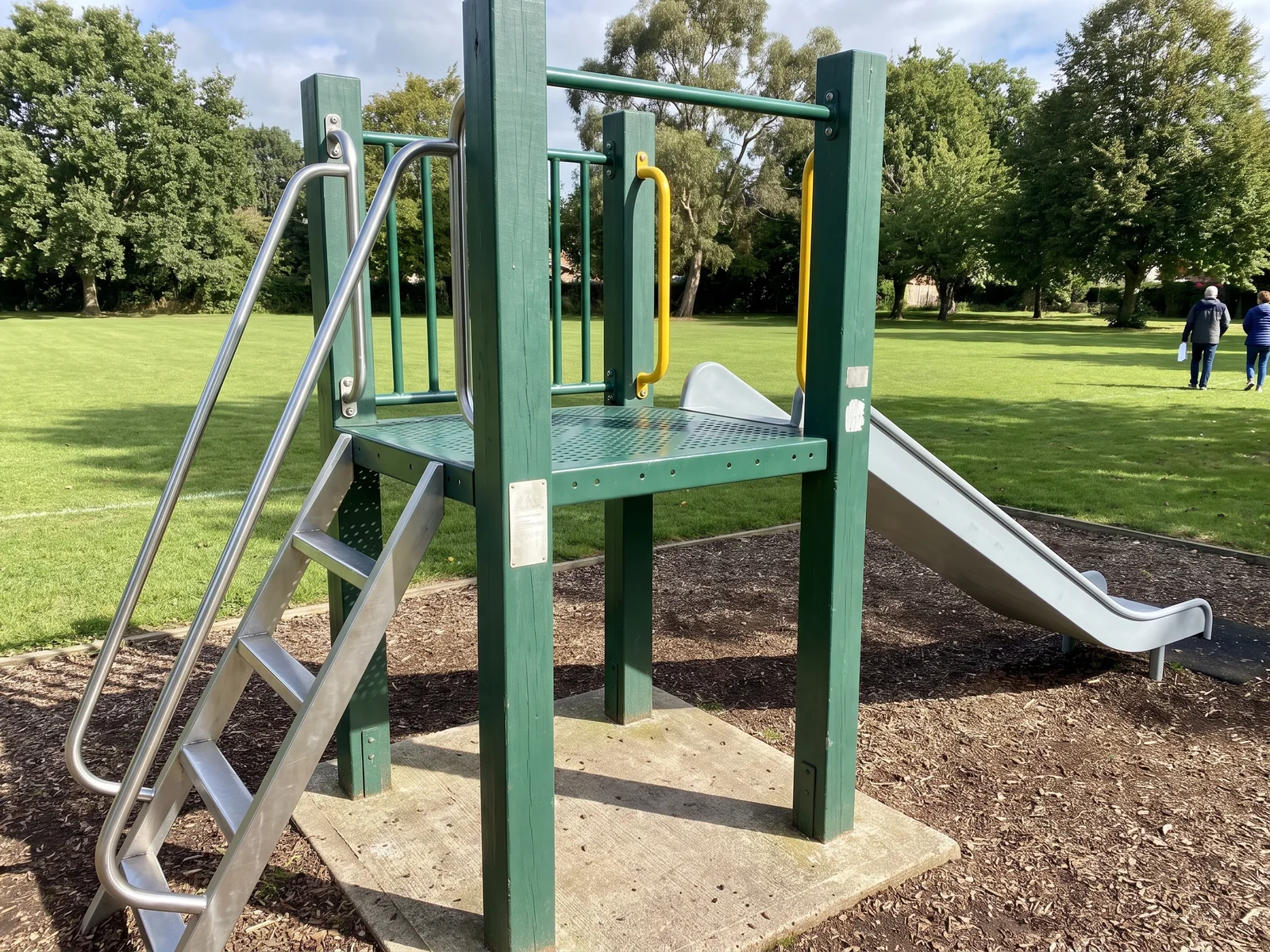

A freestanding slide unit in a park corner: ladder, punched deck on evergreen posts and a grey straight slide

How it is drawn

The unit gets its own structure number on your layout, a deck height matched to its age zone, and its ladder approach, exit region and use zone drawn and clash-checked with the rest of the site.

How it stands

Every post of the unit, plus the slide's support posts and exit foot, is on the footing detail drawing with its footing size shown. The unit is pre-assembled in the factory with the other outdoor structures, then numbered and packed with its own part list.

Adding a unit to an older site

  • Existing structure from us

    The new unit is ordered to the same project file, so part numbers and colors follow the original.

  • From another supplier

    Send photos and your site plan, and the unit is drawn to stand on its own footings next to it.

LadderThe ladder approach is drawn on your layout together with the slide's exit region and use zone.
DeckPlastisol-coated punched steel, at a height matched to the age zone.
Posts · Ø114 × 3.0 mmGalvanized, powder-coated steel, each on its own footing from the footing detail drawing.
SlideRotomolded straight or wave slide, or 304 stainless steel, fixed with 304 tamper-resistant fasteners.
09/ 13Stainless sections · drawn footings

Embankment SlidesStainless Steel Sections on Footings We Draw

An runs down a natural or built slope with no tower: a park bank, a hillside school ground or a landscaped mound.

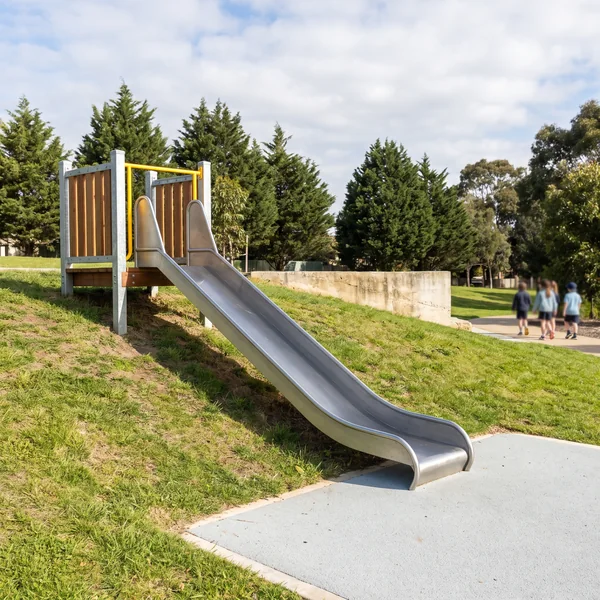

A stainless steel embankment slide running down a grassy park bank
Slope section · drawn from your survey · footing sizes on the footing detail drawing
  • Plan and elevation of the slide along your slope
  • Footing positions at the top, bottom and intermediate supports
  • Section list keyed to part numbers

Every stainless section is checked against the drawing before it goes into the container.

304 stainless, in sections

304 stainless steel with a brushed finish, built in sections by a partner factory and inspected by our QC against the drawing and spec before loading.

What the design office draws

From your slope survey or section drawing, the slide is drawn along the bank with its top start point, its exit and the use zone in front of the exit, to the CPSC handbook values for that slide's height, or to EN 1176.

Top, bottom and intermediate support footings are drawn, each with its footing size on the footing detail drawing. The slide gets its orientation against the north arrow and is placed out of direct afternoon sun where the slope allows, or planned under shade.

Supplied with the slide

Slide sections, fixings and footing detail drawings come from us.

Your side

Earthworks on the slope and the footing concrete are done by you or your local contractor, working from our drawings.

Embankment slideA slide laid along a slope, with the ground itself doing the work of a tower.
10/ 13Colors · fixings · inclusive

Slide OptionsColors, Tamper-Resistant Fixings and Inclusive Double-Lane Slides

Rotomolding workshop with steel molds and finished slides in several colors

Colors

Rotomolded slides in our standard color range, with custom colors on request. The color runs through the wall.

A capped stainless tamper-resistant fastener and the security bit that opens it

Tamper-resistant fixings

304 stainless steel, capped, at every slide connection, standard on every order.

A ramp and transfer platform leading to an upper deck, with ground-level play panels

Inclusive layouts

A double-lane wave slide beside a transfer platform lets a child slide next to a carer or friend. It is planned with ramps and accessible surfacing on inclusive playground equipment.

11/ 13Our molds · 20–30 days · same part number
Two operators lifting a yellow spiral slide section out of an open steel mold
From our own steel molds

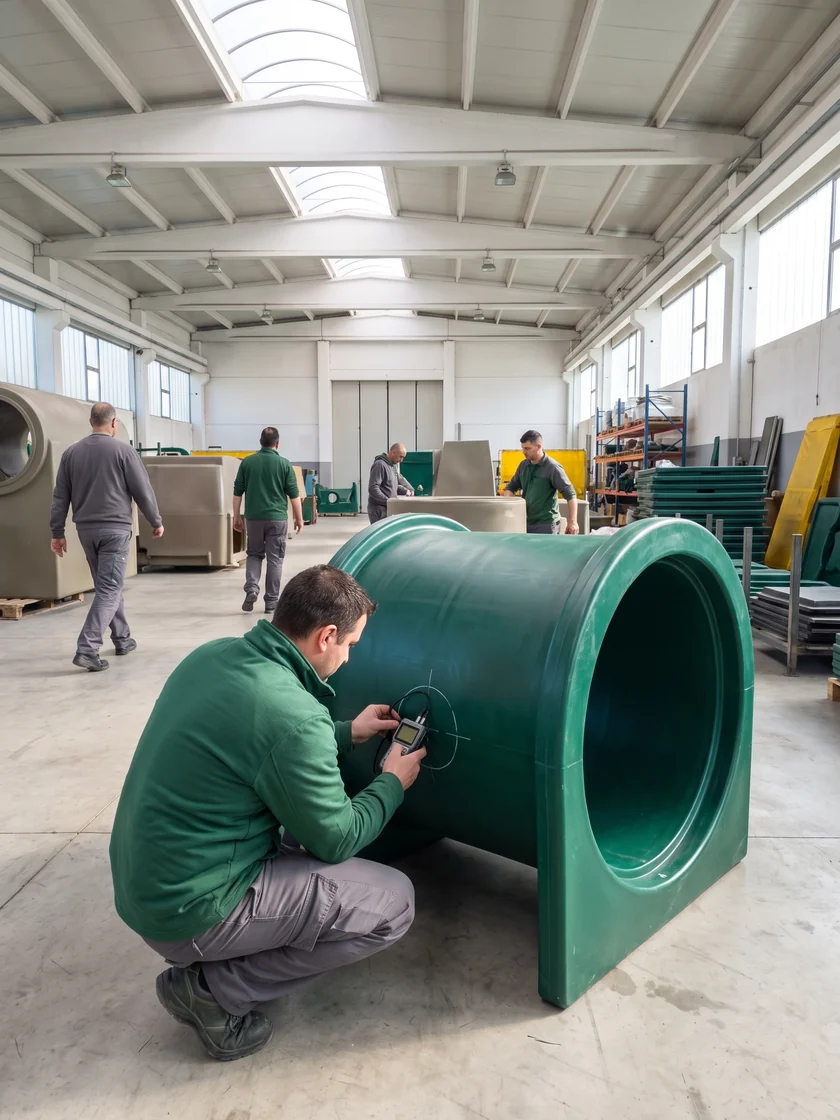

An ultrasonic wall-thickness reading taken on a rotomolded part
Ultrasonic wall-thickness check

Slide Production, Checks and Replacement Slides

Made in our molds

Rotomolded slides are made in our rotomolding workshop from our own steel molds. The process is on playground equipment manufacturing, and the ultrasonic wall-thickness check on every slide and tunnel is on about us.

Stainless steel and embankment slides are partner-built and inspected by our QC before loading.

20–30 days · same container plan

Slides are made to your approved drawing in 20–30 days, with the structure they fit, and loaded on the same container plan.

5-year warranty · replacement slides

Rotomolded parts, including slides, carry a 5-year warranty. For a replacement slide or a phase 2 slide:

  1. Send a photo
  2. Part number from your packing list
  3. Made to the same part number and color

Warranty, phasing and slide choices in your budget: playground equipment cost

12/ 13Four ways to order

Playground Slides for Parks, Schools, Dealers and Installers

For parks departments, school districts, dealers and installers adding slides to a play structure, or ordering a freestanding slide unit or embankment slide on its own.

  • Parks departments

    Slides on new structures, freestanding slide units and embankment slides, with single-item plans and compliance statements for the approval file.

  • School districts

    Slides matched to Pre-K and grades 1–5 zones on one campus layout, with stainless options for grounds open after hours.

    School playgrounds →

  • Dealers

    Single-item plans and elevations, item data sheets and an unbranded image library for each slide form, with layouts issued under your brand.

    Wholesale →

  • Installers

    One footing detail drawing covering every slide support post and exit foot, assembly drawings with torque values marked, and pre-assembly video of the slide connections.

A playground inspector measuring with a tape beside an existing park structure
13/ 13Nine items · one message

What to Send for a Playground Slide Quotation

Slide quotation · checklist
  • Site plan with dimensions, or the plan of the existing structure the slide goes on
  • Age zones on the site: 2–5 years, 5–12 years, or both
  • Deck heights the slides start from, if the structure already exists
  • Slide forms you have in mind: straight, wave, double-lane wave, spiral, tube, stainless or embankment
  • For an embankment slide: a slope survey or section drawing of the bank
  • Swings, spinners, paths and fences near the slide position
  • The standard you build to: ASTM F1487 / CPSC handbook or EN 1176
  • Colors, or stainless steel for vandal-prone sites
  • Whether you want an on-site supervisor for installation

Send to Anna · WhatsApp +86 177 0272 7677 · or the form below

Attach your site plan and the deck heights; the slides come back drawn on your layout.
